Connect to Oracle database via JDBC

This article provides examples of how to establish database connection with an Oracle database server – the first step to have Java applications working with one of the most popular database systems. Suppose you already had a version of Oracle database installed, such as Oracle Database 11g Express Edition.

1.    Download JDBC driver library for Oracle database

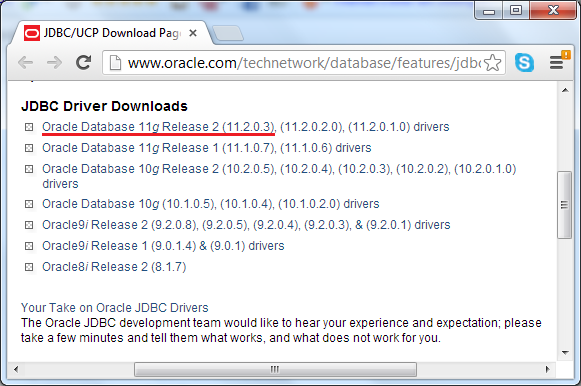

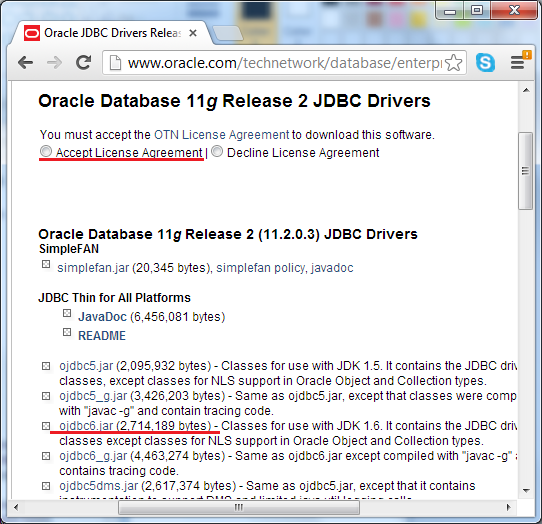

Click here to visit Oracle’s JDBC driver download page:oracle jdbc driver download pageSelect the JDBC driver version that matches Oracle database engine installed on your computer. Here we select Oracle Database 11g Release 2 ( which brings us to the jar download page:oracle jdbc jar downloadAs you can see, there are several jar files which may cause confusion. However, the main jar file is ojdbc5.jar (for Java 5 or later) or ojdbc6.jar (for Java 6 or later). Here we select the version for Java 6. Remember to select Accept License Agreement at the top, and click on the link ojdbc6.jar to download.NOTE: Oracle requires users to have an Oracle account for downloading, so you may have to register an account if you don’t have one.

Place the ojdbc6.jar file under your project’s classpath as usual as using any jar file.

2.    JDBC database URL for Oracle database

The syntax of database URL for Oracle database is as follows:

  • drivertype can be thin, oci or kprb.
  • database can be in the form of hostname:port:SID or a TNSNAMES entry listed in the file tnsnames.ora reside on the client computer. The default port is 1521.

Oracle categorizes their JDBC driver into four different types, as described in the following table:

Driver typeUsagedrivertype
Thin DriverFor client-side use without an Oracle installationthin
OCI DriverFor client-side use with an Oracle installationoci
Server-Side Thin DriverSame as Thin Driver, but runs inside an Oracle server to access a remote serverthin
Server-Side Internal DriverRuns inside the target serverkprb

According to Oracle, if your JDBC client and Oracle database server are running on the same machine, you should use the OCI Driver because it is much faster than the Thin Driver (The OCI Driver can use Inter Process Communication – IPC, whereas the Thin Driver can use only network connection).For example, if you want to connect user tiger with password scott to an Oracle database with SID productDB through default port on host dbHost using the Thin Driver, you can construct the URL as follows:
String url = “jdbc:oracle:thin:tiger/scott@dbHost:1521:productDB”

3.    Register Oracle JDBC driver

The Oracle JDBC driver class name is oracle.jdbc.OracleDriver. You can register this driver as follows:
DriverManager.registerDriver(new oracle.jdbc.OracleDriver());
NOTE: Since Java 6 (JDBC 4.0), registering the driver explicitly as above becomes optional. As long as we put theojdbc6.jar file in the classpath, JDBC driver manager can detect and load the driver automatically.

4.    Establish connection

With JDBC, we can establish a database connection by calling the method getConnection() of the DriverManager class. There are three versions of this method:

    • static Connection getConnection(String url)
    • static Connection getConnection(String url, Properties info)
    • static Connection getConnection(String url, String user, String password)

So we can have three ways for making a connection as follows:
Using only database URL for everything
In this method, we specify all connection properties in a single URL string, for example:

String dbURL = "jdbc:oracle:thin:tiger/scott@localhost:1521:productDB";
Connection conn = DriverManager.getConnection(dbURL);
if (conn != null) {
That uses the Thin Driver to connect the user tiger with password scott to the database SID productDB running on the same machine through the default port 1521.
Using database URL, username and password
In this method, we pass the username and password as additional arguments to the method getConnetion(), for example:
String dbURL = "jdbc:oracle:oci:@ProductDB";
Properties properties = new Properties();
properties.put("user", "scott");
properties.put("password", "tiger");
properties.put("defaultRowPrefetch", "20");
Connection conn = DriverManager.getConnection(dbURL, properties);
In this example, we are using the OCI Driver with a TNSNAMES entry ProductDB, and specifying an additional propertydefaultRowPrefetch which is the number of rows to prefetch from the server.

5.    Example program

To demonstrate, we create a small example program below that establishes three different connections in 3 ways mentioned above, and finally close all the connections:

package net.codejava.jdbc;
import java.sql.Connection;
import java.sql.DriverManager;
import java.sql.SQLException;
import java.util.Properties;
 * This program demonstrates how to make database connection with Oracle
 * database server.
 * @author
public class JdbcOracleConnection {
    public static void main(String[] args) {
        Connection conn1 = null;
        Connection conn2 = null;
        Connection conn3 = null;
        try {
            // registers Oracle JDBC driver - though this is no longer required
            // since JDBC 4.0, but added here for backward compatibility
            // METHOD #1
            String dbURL1 = "jdbc:oracle:thin:tiger/scott@localhost:1521:productDB";
            conn1 = DriverManager.getConnection(dbURL1);
            if (conn1 != null) {
                System.out.println("Connected with connection #1");
            // METHOD #2
            String dbURL2 = "jdbc:oracle:thin:@localhost:1521:productDB";
            String username = "tiger";
            String password = "scott";
            conn2 = DriverManager.getConnection(dbURL2, username, password);
            if (conn2 != null) {
                System.out.println("Connected with connection #2");
            // METHOD #3
            String dbURL3 = "jdbc:oracle:oci:@ProductDB";
            Properties properties = new Properties();
            properties.put("user", "tiger");
            properties.put("password", "scott");
            properties.put("defaultRowPrefetch", "20");
            conn3 = DriverManager.getConnection(dbURL3, properties);
            if (conn3 != null) {
                System.out.println("Connected with connection #3");
        } catch (ClassNotFoundException ex) {
        } catch (SQLException ex) {
        } finally {
            try {
                if (conn1 != null && !conn1.isClosed()) {
                if (conn2 != null && !conn2.isClosed()) {
                if (conn3 != null && !conn3.isClosed()) {
            } catch (SQLException ex) {
